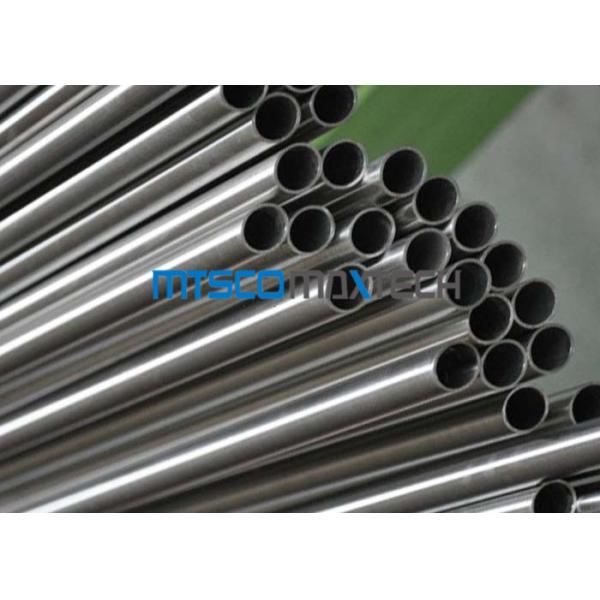

18SWG TP309S / 310S Precision Stainless Steel Tubing , ASTM A213 Seamless Steel Tube

Brand Name : MTSCO

Model Number : MTSCOPSST43

Certification : ISO 9001 & PED & AD2000

Place of Origin : CHINA

MOQ : negotiable

Price : 6000-12000USD/TON

Payment Terms : T / T ; L / C

Supply Ability : 300 Tons / Month

Delivery Time : 30 Days

Packaging Details : Iron Case / Plywood Case

Material : Stainless Steel TP310S , 300 Series

End Cut : Plain End ( PE ) / Bevel End ( BE )

Delivery Condition : Soft / Hard

NDT : Eddy Current Or Hydraulic Test

Inspection : 100%

Surface : Annealing

Contact Now

18SWG TP309S / 310S Stainless Steel Precision Tube, ASTM A213 Seamless Tube



Product Description

Outer Diameter3.18-101.6mm
Wall Thickness0.5-20mm
NPS1/8"-24"
Schedule5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S
Material Grade304/304L/316/316L/321/309S/310S, etc
StandardASTM A269, ASTM A312, etc
Applicationused in Fluid and Gas Transport, Structure and Machining,etc
CertificatesISO9001:2008, PED, BV
Process MethodCold Drawn/ Cold Rolled
Surface FinishAnnealed/ Polished
PackageWoven bag for each piece, then packed in seaworthy wooden cases
Delivery Time20-60 Days after receiving the deposit (Normally according to the order quantity)
Price ItemFOB, CIF or as negotiation
PaymentT/T(30% in advance, 70% against the BL Copy) or as negotiation
Quality RequirementMill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Main MarketEurope, Middle East, Southeast Asia, South America, etc


18SWG TP309S / 310S Precision Stainless Steel Tubing , ASTM A213 Seamless Steel Tube

ASTM A213 / A213M Chemical Composition :

ElementsTP310S(wt%) S31008
(C) Carbon, max :0.08
(Mn) Manganese, max :2
(P) Phosphorus, max :0.045
(S) Sulfur, max :0.03
(Si) Silicon, max :1
(Ni) Nickel :19.0 - 22.0
(Cr) Chromium :24.0 - 26.0
(Mo) Molybdenum :…
(Fe) Iron :…
(Cu) Copper :…
(N) Nitrogen :…

Specification :


Size		OD : 4.76 - 25.4mm
WT : 0.71 - 2.11mm
Length : >1000Meters
4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm
6 * 1mm / 6 * 1.5mm
6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm
7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm
9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm
10 * 1mm / 10 * 1.5mm
12 * 1mm / 12 * 1.5mm / 12 * 2mm
12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm
14 * 1mm / 14 * 1.5mm / 14 * 2mm
15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm
16 * 1mm / 16 * 1.5mm / 16 * 2mm
19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm



MTSCO has the most advanced technology — The floating plug drawing technology which are used in Korea , and equipped with the most environmentally process — Bright annealing process . So our bright annealed precision tube produce technology make us can produce 300 tons high precision tubes every months .
